Working with Script Results User Guide¶

Overview¶

This guide provides tips and pointers for working with the result files generated by the scripts tool. In it, you will learn:

Where to find the result files
How the result files are organized
Tips and tricks for working with different kinds of data

Working with Results Video

Working with Dated Content Video

Prerequisites¶

System Requirements¶

Windows 10 or later (recommended: Windows 11)
PowerShell 5.1 or later
KP Analysis Toolkit installed (see Installation Guide)
Completed set of script results processed by the scripts tool

Knowledge Requirements¶

The collection scripts address a wide range of topics related to Linux, MacOS and Windows operating systems. Users should be familiar with the following:

Operating systems being audited
Auditing frameworks -- such as SOC2, HIPAA and PCI DSS -- through which the results will be interpreted
Configuration management practices such as those published by the Center for Internet Security
File system permission management
Remote administration protocols such as Remote Desktop Protocol and SSH
Use of centralized vs local user authentication mechanisms

Required Files/Data¶

Excel spreadsheets produced by the kpat_cli scripts command

Getting Started¶

Results Location¶

Script results will be located in the results\ folder relative to the folder where the tool began searching for raw results files.

For instance, if you launched kpat_cli scripts as follows:

# Launched from the Scripts Results folder
C:\Users\YourName\Downloads\Customers\Acme Corp\Script Results> kpat_cli scripts

# Launched with the -d parameter
C:\Users\YourName> kpat_cli scripts -d "Downloads\Customers\Acme Corp\Script Results\"

Then your results will be located in

C:\
└── Users\
    └── YourName\
        └── Downloads\
            └── Customers\
                ├── Acme Corp\
                │   ├── Script Results\                             < Search started here
                │   │   ├── prod_web\
                │   │   │   ├── linux-web-server-01.txt
                │   │   │   ├── linux-web-server-02.txt
                │   │   │   └── linux-haproxy-load-balancer-01.txt
                │   │   ├── prod_db\
                │   │   │   ├── linux-db-primary-01.txt
                │   │   │   ├── linux-db-secondary-01.txt
                │   │   │   └── linux-db-backup-01.txt
                │   │   ├── accounting\
                │   │   │   ├── windows-acct-workstation-01.txt
                │   │   │   ├── windows-acct-workstation-02.txt
                │   │   │   ├── macos-acct-workstation-03.txt
                │   │   │   └── windows-file-server-01.txt
                │   │   └── results\                                < Results saved here
                │   │       ├── Darwin_search_results_20250911_143022.xlsx
                │   │       ├── Linux_search_results_20250911_143022.xlsx
                │   │       └── Windows_search_results_20250911_143022.xlsx
                │   └── Other Documents\
                └── Beta Corp\

Additional notes:

All OS findings will be grouped together into one file
- Linux_search_results....xlsx: Linux database and webserver results
- Darwin_search_results....xlsx: MacOS accounting workstation
- Windows_search_results....xslx: Windows workstations and file server
All files are timestamped to the date/time when the analysis was started
Multiple runs will create new files in the same folder
Running kpat_scripts in the Beta Corp\...\ folder will create a new Beta Corp\...\results\ folder

Results File Organization¶

Beyond the basic OS-specific organization, the Excel workbooks are also organized in a structured, consistent manner to facilitate finding what you're looking for:

Grouped by topics --> See Categories for details
- Color-matched worksheet tabs and Search Results Summary table
Consistent naming of worksheets across operating systems --> "Pending Updates", "IP Addresses" and "Running Processes" includes the same information for Linux, MacOS, and Windows
Summary Worksheet for search results with hyperlinks to the details
System Summary worksheet with all OS details in one place
Detailed results worksheets grouped and color-coded by topic

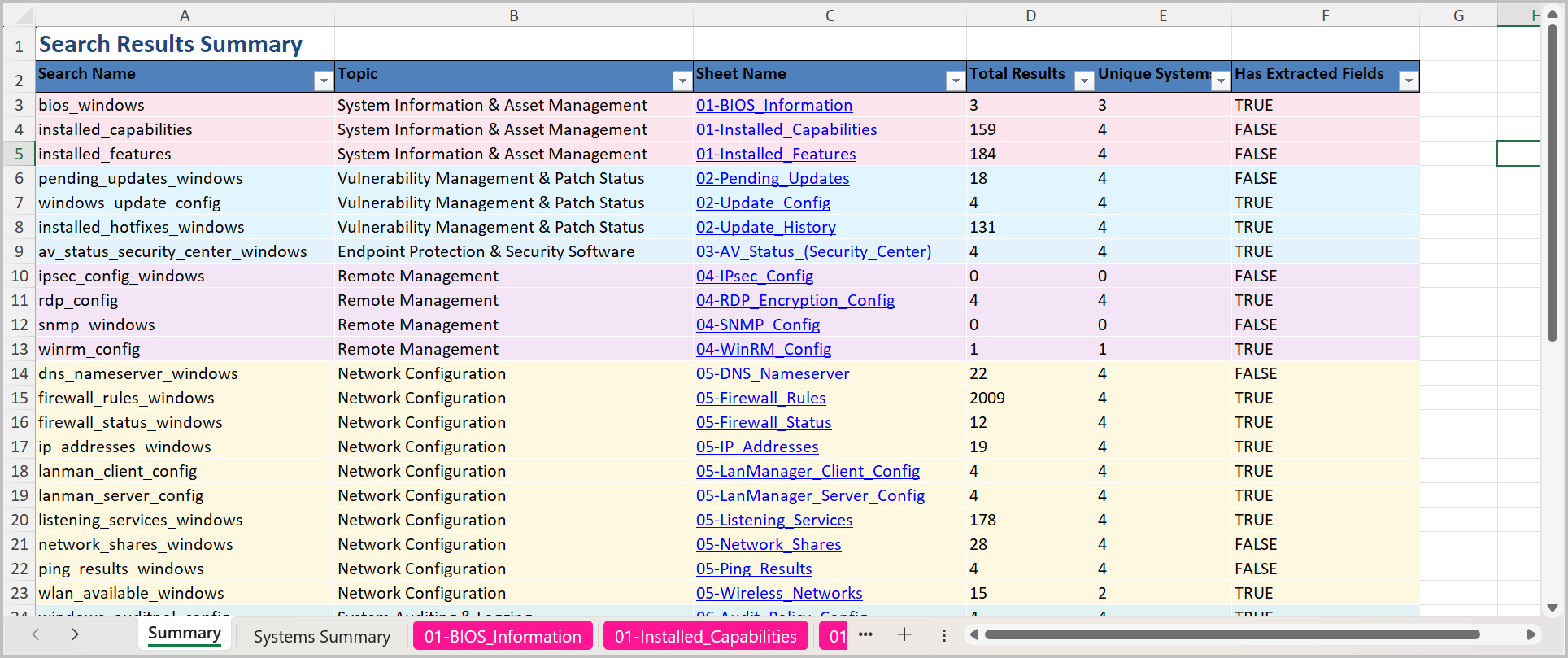

Search Summary Tab¶

Information on this worksheet includes:

Field Name	Description
Search Name	The unique search name defined in the audit search config file. Useful information for troubleshooting with the application maintainer if results don't show what you expected
Topic	The topic that the search result is part of
Sheet Name	Hyperlink to the Excel worksheet where the details are found
Total Results	The total of search results which matched this search configuration
Unique Systems	The total of unique systems which had at least one matching result
Has Extracted Fields	`True` if the search configuration mapped specific text onto named columns in the results `False` if the search result is just the raw line of text from the original source file

Tips

Use the hyperlinks to navigate the results from this tab
Excel appears to lack a Back button like your web browser has. But the keyboard shortcut works:
- Use Alt-LeftArrow to return to the Summary worksheet
The colors between the rows in the table and worksheet tabs at the bottom are synchronized. If they appear more vivid on the tabs, that's Excel's doing.

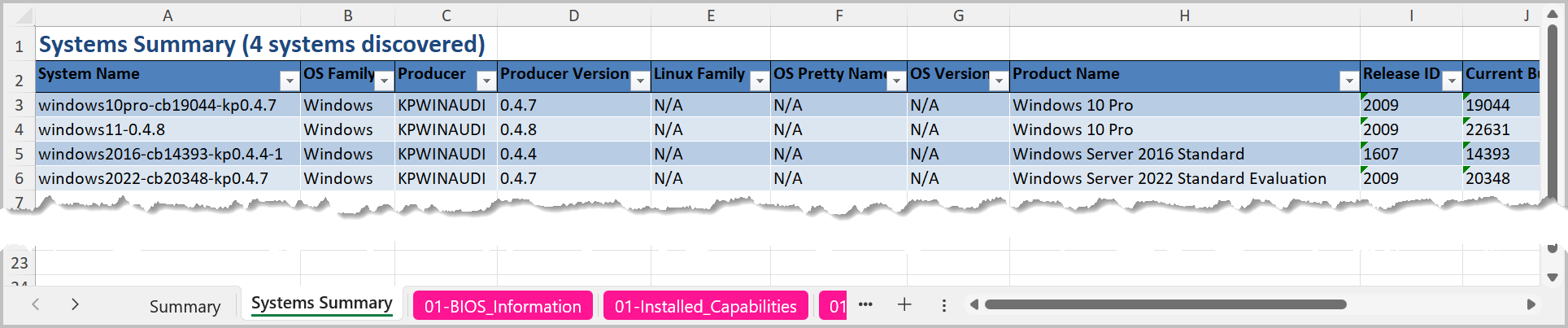

System Summary Tab¶

System Summary Tab

Information on this worksheet includes:

Field Name	Description
System Name	This is the `filename` where the results came from
OS Family	`Darwin`(MacOS), `Linux` or `Windows` OS family group
Producer	The collection script which produced the results (`KPMACAUDIT`, `KPNIXAUDIT`, `KPWINAUDIT`)
Producer Version	The version of the script that produced the results
Linux Family	`Deb` or `RPM` as broad categories of Linux distro families. Most Linux OSes that we run into will trace their heritage either Debian- or RPM-based package mangement and configuration dialects.
OS-specific Details	`Pretty Name`, `OS Version`, `Product Name`, `Release ID`, `Current Build` and will all be filled in according to the OS Family

Tips:

Organize the results by:
- Using folders to group by common characteristics
- Renaming files to prepend a meaningful tag such as prod_, endpoint_, or dba_ to the file
Use Producer Version to confirm that returning clients used the newest version of the collection script
For Windows-based systems, Current Build and UBR provide near-instant answers for:
- Is the Operating System still supported by Microsoft?
- Is the Operating System up-to-date with all available hotfixes and cumulative updates?

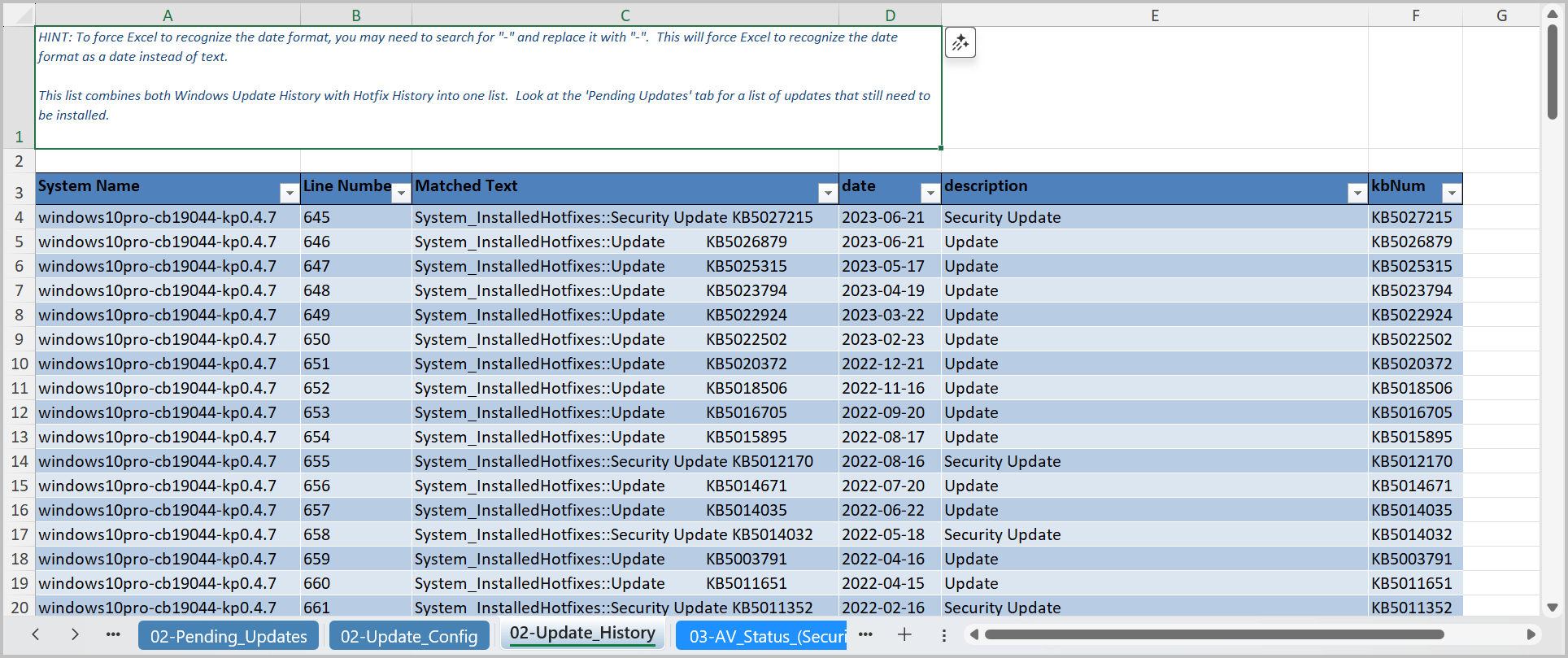

Detailed Results¶

Detailed Search Results

Each detailed search result worksheet includes the following:

Field Name	Description
Comment	A comment box is included on most search results which provides hints, tips or other helpful information on how to use the results. It should be formatted to display all of the text, but this isn't perfect, so you may need to increase the row height.
System Name	This is the `filename` where the results came from
Line Number	The matching line number from the source file
Matched Text	The matching text from which the results were extracted
Content-specific Fields	For many search results, the `Matched Text` is parsed out into specific fields

Working with Dated Results¶

Many of the search results extract date fields which can be used to determine the effectiveness of the control implementation over time. By using Excel's PivotTable feature, we can turn these results into a calendar for a much more natural presentation.

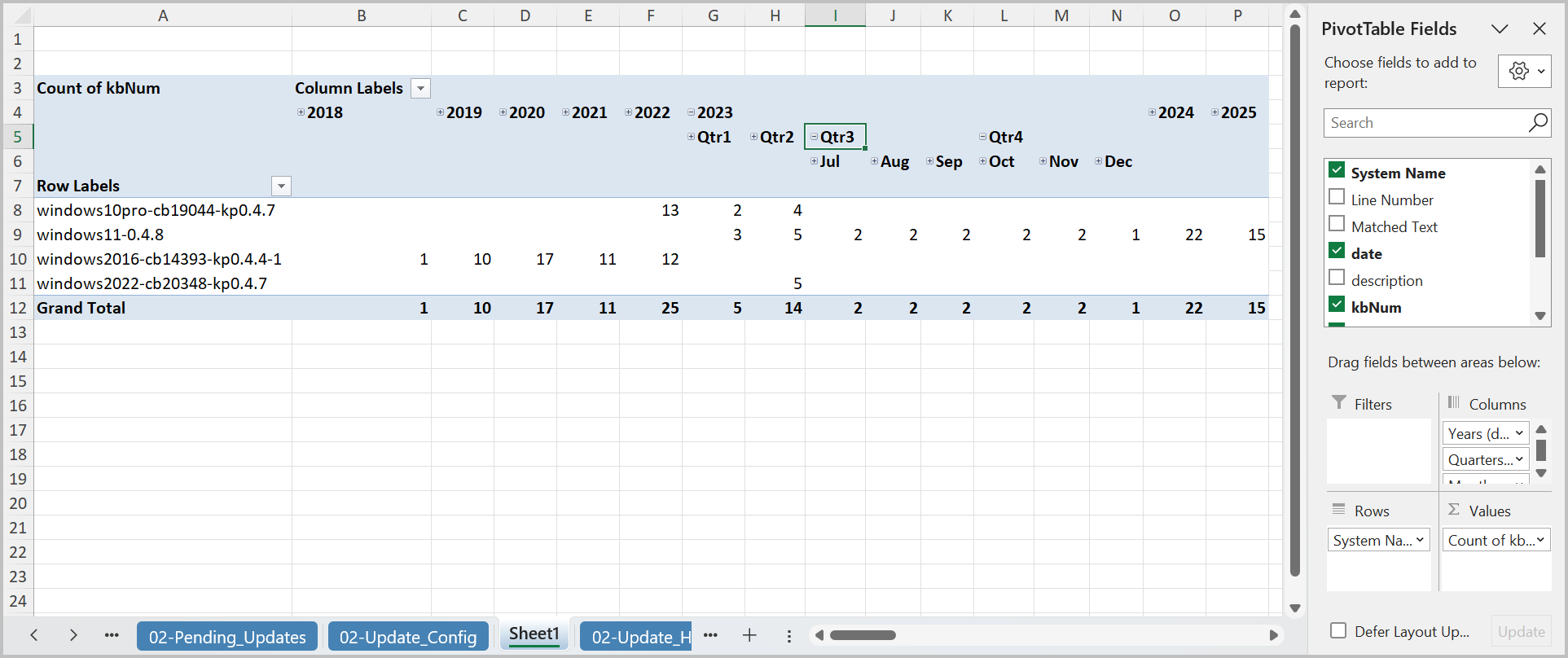

The following PivotTable took less than 60 seconds to create and clearly depicts that some systems in the sample set haven't been patched since Q2 2023. A serious finding indeed! Patching Calendar

Using the results from the Update History worksheet, here are the steps to reproduce this Patching History calendar view:

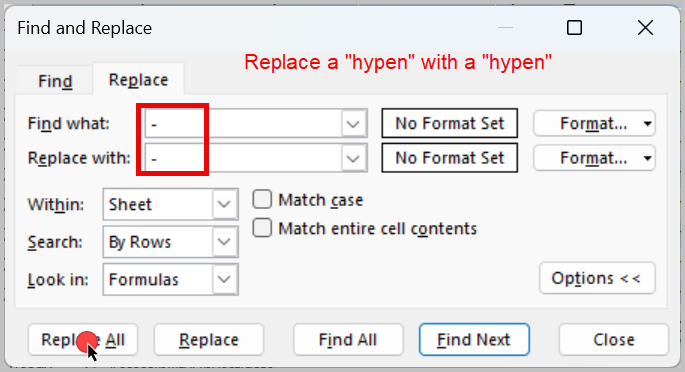

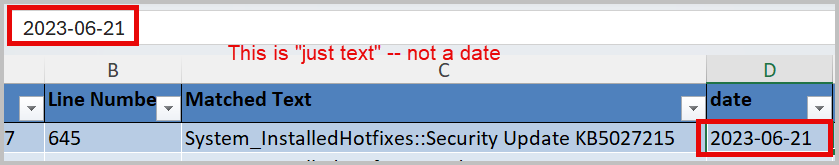

Convert all date-like fields: Just because it looks like a date doesn't make it a date for Excel. A neat trick is to Search|Replace some text with the same text.

Search and Replace...

Now they're all dates!

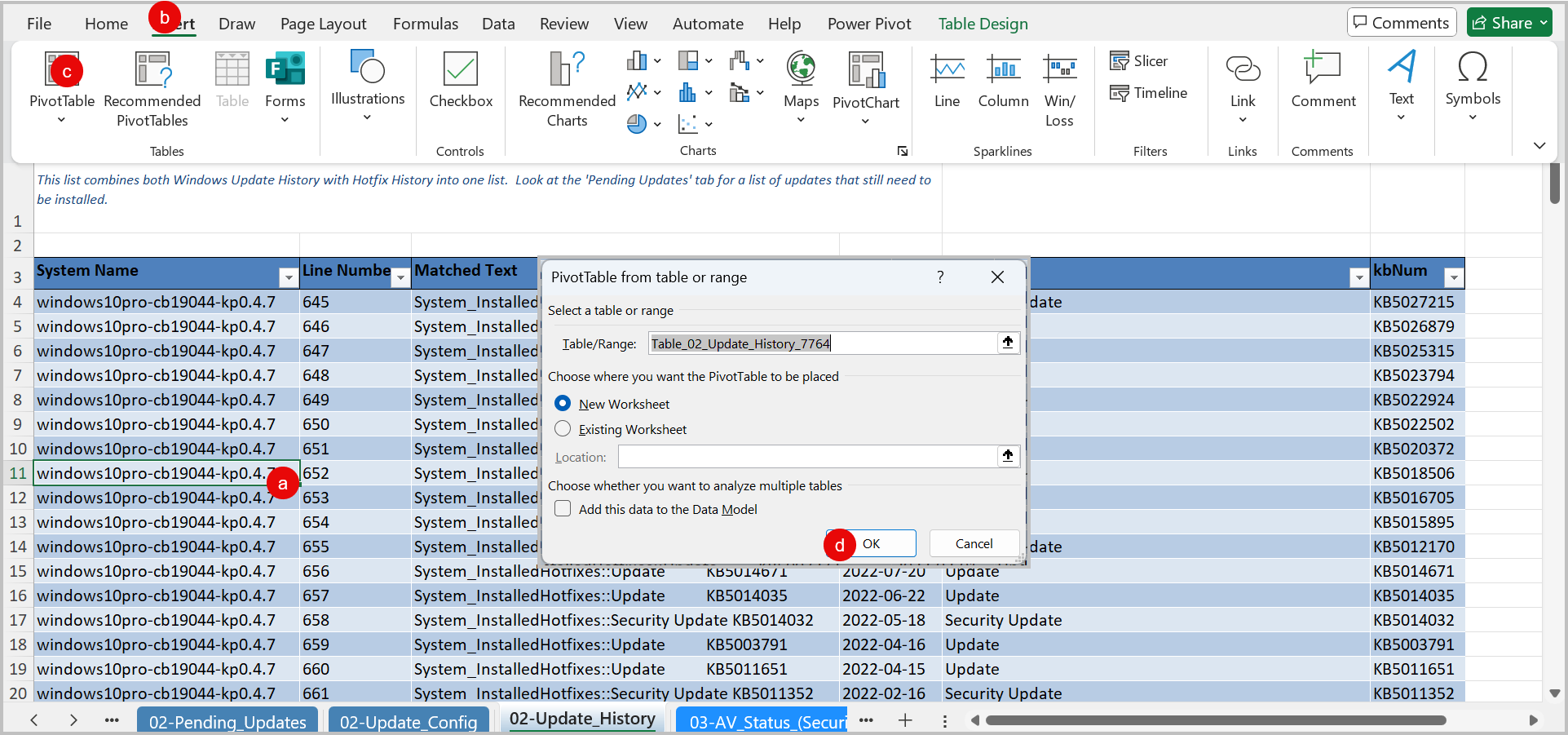

Create a PivotTable: Create a PivotTable on a new worksheet.
1. Click anywhere inside the table
2. Click "Insert" on the ribbon
3. Click "PivotTable"
4. Click "OK"

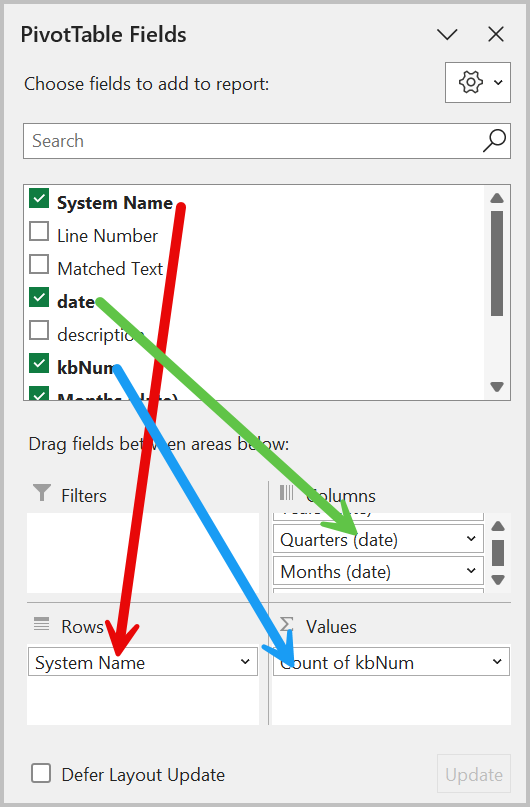

Build the PivotTable: Add the fields for the PivotTable
1. System Name --> Rows
2. KBNum --> Values
3. Date --> Columns

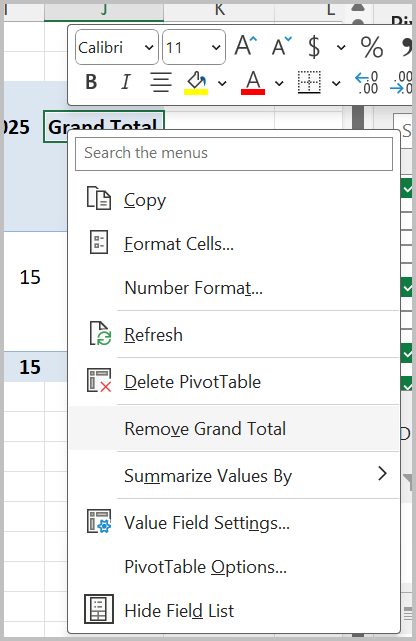

(Optional) Remove "Total" Columns: You can optionally remove the "Quarter Total" and "Grand Total" columns. As you expand the interesting years and quarters:
1. Right-click on any "Total" column that's just cluttering up the display
2. Select "Remove..."
